Traditional question, anyone have a decent DIY for narrowing a beam

Page 1 of 2 1, 2  Next

View previous topic View next topic Go down

Traditional question, anyone have a decent DIY for narrowing a beam

Post by 86vwgti8v on Sun Jun 05, 2011 9:18 am

I been searching and I turned up some very useful info. I am just wondering if anyone has something they woulnd't mind sharing. I will also bee installing adjusters while I am in there.

Do I need some sort of new bearings to go along with this?

Errybody like pics


DONK!! (gotta fix that)
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by rpm750 on Sun Jun 05, 2011 9:58 am

Yeah VW trends, now no longer published, had an article a few years ago......
http://www.vwtrendsweb.com/tech/0407vwt_beam_narrowing/index.html

If you have a Ball Joint Beam narrow it from the middle.
avatar
rpm750
Dub God

Number of posts : 2258
Age : 53
Location : Out in the shop.
Registration date : 2008-11-11

View user profile http://forum.georgiadubs.com/

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by 86vwgti8v on Sun Jun 05, 2011 12:06 pm

Thank you for that.
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by Grifspop on Sun Jun 05, 2011 5:19 pm

Here's another build thread for a narrowed beam, these guys narrow the beam without welding in 4 places, they slot the beam and weld it in 2 places:

http://www.thesamba.com/vw/forum/viewtopic.php?t=394692&highlight=narrowed+beam+cut
avatar
Grifspop
Dub God

Number of posts : 2323
Location : Someplace you wouldn't think to look
Registration date : 2009-04-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by 86vwgti8v on Mon Jun 06, 2011 10:44 am

I think I'm going to go for the 2nd option. there is some missing information from it but I think I can figure it out...
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by 86vwgti8v on Mon Jun 06, 2011 8:01 pm

Got a few questions, If anyone could answer them I would greatly appreciate it.

1)The locators for the steering box. SHould I grind them smooth and just tighten down the box after its in the car where it will seat? also will it not interfere witht he grease fitting?


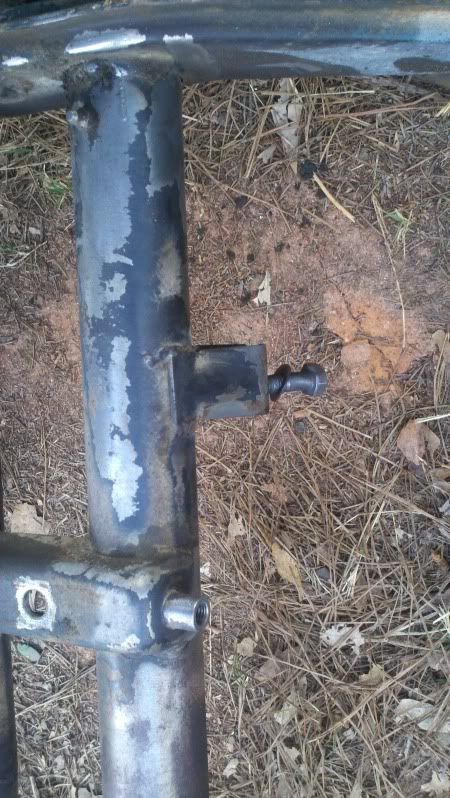

2)The steering dampner mount thingy, If I narrow the beam 6 inches should Imove that 3? I beleive it will be close to the side if I do that.
EDIT: after re reading the write up it states to do this.....


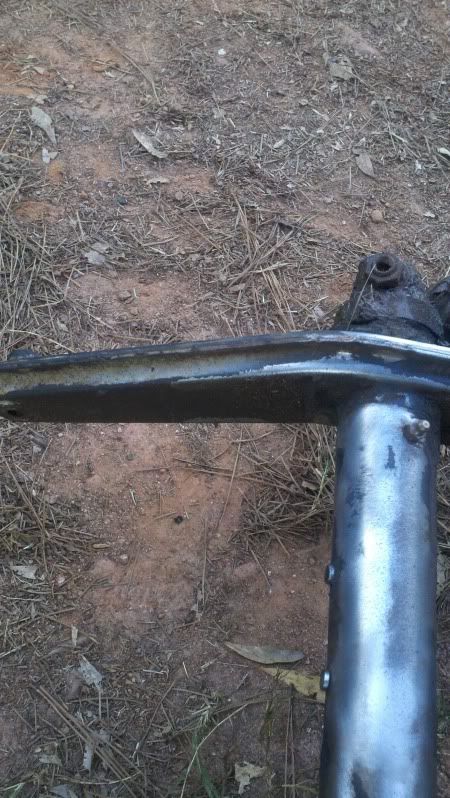

3) strut tower thingies. cut em off and weld it back solid and sturdy?



4) is the sway bar a wash? just cut it off?

avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by buggin70 on Mon Jun 06, 2011 10:38 pm

Save it when you narrow the tie rods the sway bar fits in the tie rods perfect
avatar
buggin70
Out of Control Dubber

Number of posts : 1956
Age : 25
Location : canton
Registration date : 2009-09-26

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by 86vwgti8v on Tue Jun 07, 2011 4:05 am

Ok what about the steering box locators?
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by fluxcap on Tue Jun 07, 2011 4:43 am

I ground mine off and tacked some new ones in place.

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by 86vwgti8v on Tue Jun 07, 2011 5:54 am

Cool, thanks errbody! Wish me luck!
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by bakertim2 on Tue Jun 07, 2011 8:36 am

The steering box locators will come right off with a little persuasion with an air chisel. Then just move them over and weld them back on.
avatar
bakertim2
Dub God

Number of posts : 3223
Age : 52
Location : Dallas, Ga.
Registration date : 2008-10-16

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by 86vwgti8v on Tue Jun 07, 2011 8:39 am

Air chisel, the one tool I don't have acess to. Going old school, hammer and chisel.
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by 86vwgti8v on Tue Jun 07, 2011 9:12 am

What about the bump stops? Move them, remove them, let em be?
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by callahan on Tue Jun 07, 2011 10:25 am

86vwgti8v wrote:What about the bump stops? Move them, remove them, let em be?

bump stops are for suckas!
avatar
callahan
Out of Control Dubber

Number of posts : 1271
Age : 27
Location : Acworth, GA
Registration date : 2010-02-06

View user profile http://www.facebook.com/#!/profile.php?id=1030359664

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by 86vwgti8v on Tue Jun 07, 2011 11:10 am

Lol!
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by rpm750 on Tue Jun 07, 2011 11:57 am

Looked at the thread, looks like ya cut those off flush with what was the shock tower those will be cut off also.
avatar
rpm750
Dub God

Number of posts : 2258
Age : 53
Location : Out in the shop.
Registration date : 2008-11-11

View user profile http://forum.georgiadubs.com/

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by 86vwgti8v on Tue Jun 07, 2011 12:35 pm

About to notch and saw it.
I need, to get some pics...made a ghetto jig that should make life easier.
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by drewBAKER on Tue Jun 07, 2011 1:05 pm

yea i agree with callahan on this one that bump stops are for losers. you need to notch your spring plates.
avatar
drewBAKER
Dub Crazy

Number of posts : 707
Age : 25
Location : Dallas
Registration date : 2009-02-27

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by 86vwgti8v on Tue Jun 07, 2011 6:03 pm

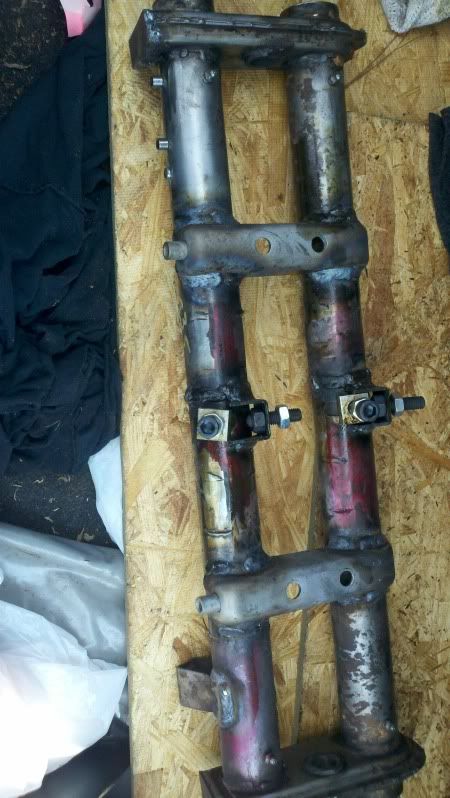

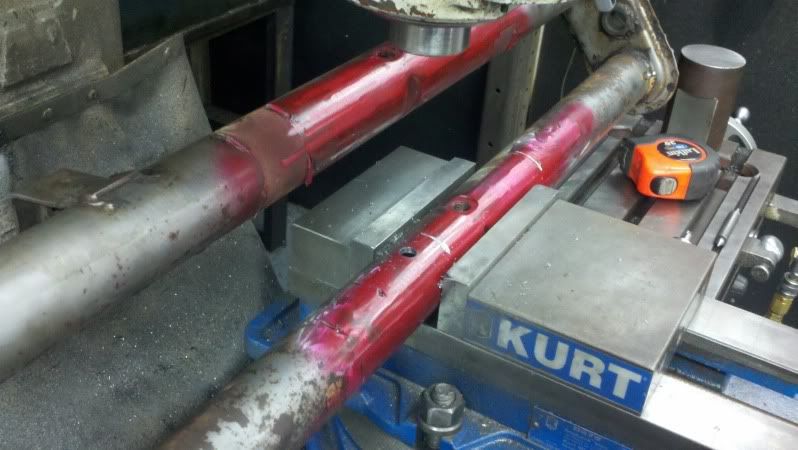

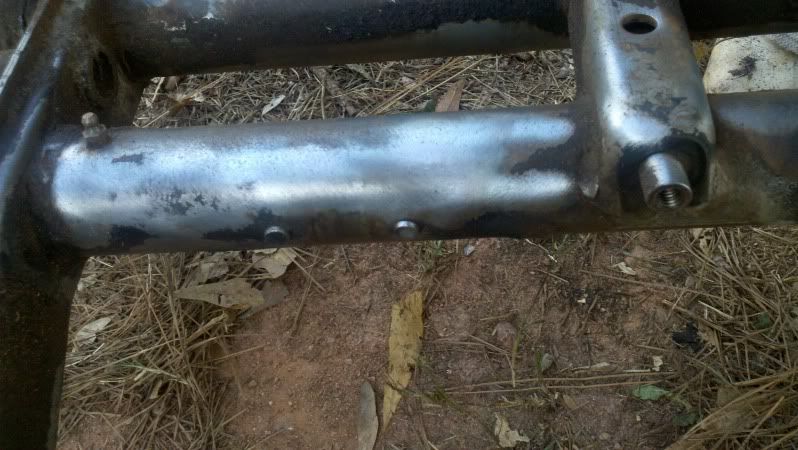

here ya go..

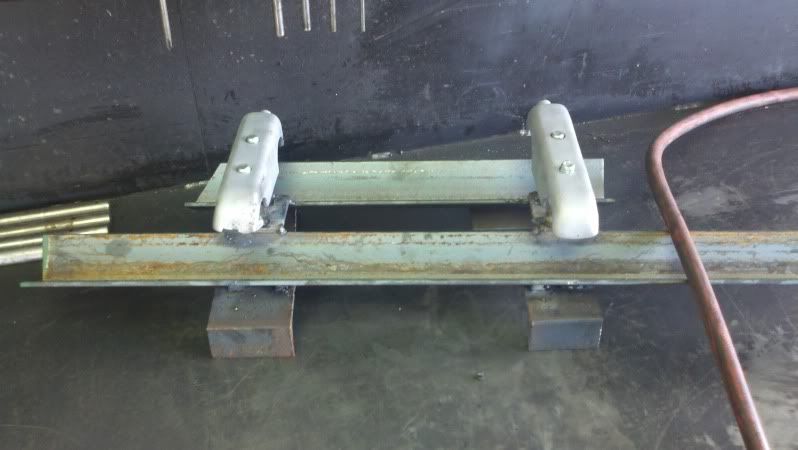

Ghetto jig.

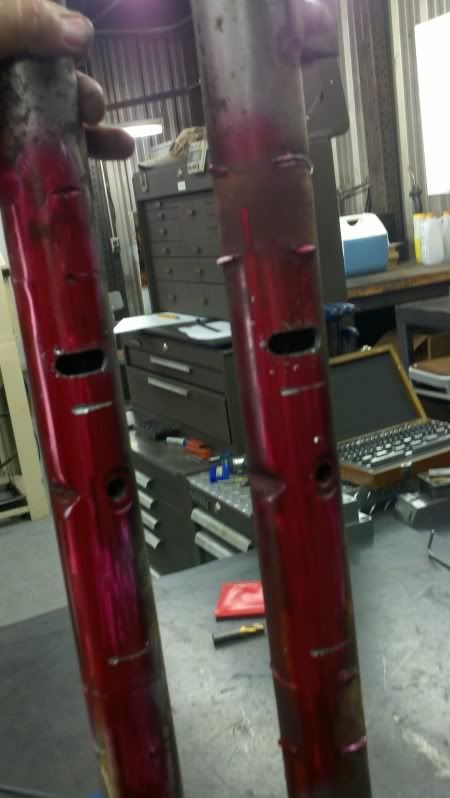

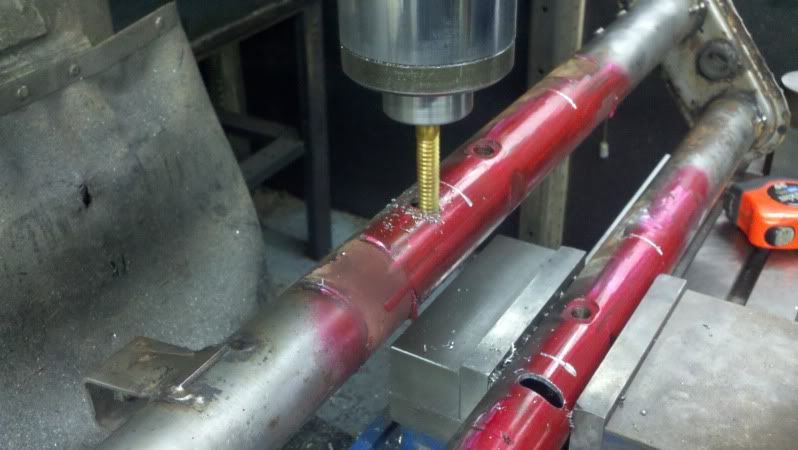

Laid out the slout and the cuts using the mill off the original center.

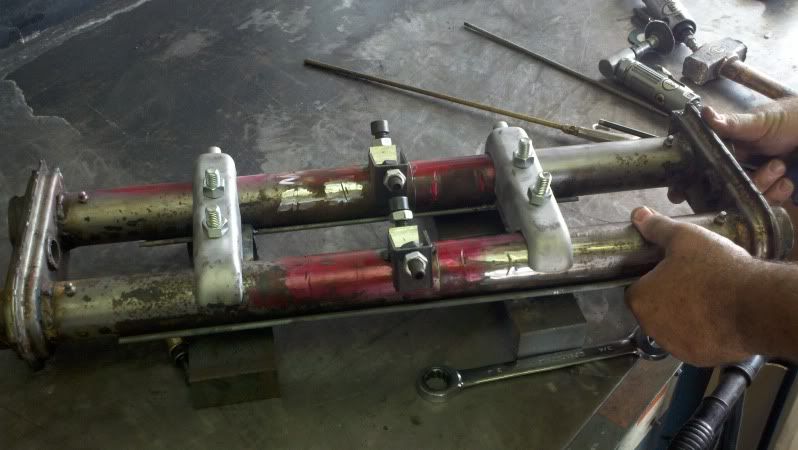

Bolted it up to the jig


tah dah!!

gonna finish grinding and paint it tomorrow. will also do the tie rods tomorrow.
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by Grifspop on Tue Jun 07, 2011 7:49 pm

Remember, don't shorten the torsion leaves from one side, shorten both sides by 1/2 the amount

Some people have tried to get away with shortening one side, and their car sits higher on one side

avatar
Grifspop
Dub God

Number of posts : 2323
Location : Someplace you wouldn't think to look
Registration date : 2009-04-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by 86vwgti8v on Wed Jun 08, 2011 11:23 am

I did shorten both sides but why would that make the car sit higher? As long as you put a dimple back in the middle...correct?
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by rpm750 on Wed Jun 08, 2011 11:37 am

86vwgti8v wrote:I did shorten both sides but why would that make the car sit higher? As long as you put a dimple back in the middle...correct?

I'm asking that same question. Dimple in the middle leaves same tension/spring on both sides, even if you left one side in its og position and made a new dimple in the middle and cut off all excess from one side.
avatar
rpm750
Dub God

Number of posts : 2258
Age : 53
Location : Out in the shop.
Registration date : 2008-11-11

View user profile http://forum.georgiadubs.com/

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by fluxcap on Wed Jun 08, 2011 1:14 pm

I think it has to do with the fact that on a stock beam, the center is of the leafpack is held stationary by the grub screw. The center of the pack never flexes and stays stiff. The further from the center you move, the more the leaf pack twists and weakens over time. Therefore if you cut the same amount off of each end, the flex/wear on each end will be the same. If you only cut one side, the uncut side would probably be weaker and sit a little lower. The side you cut will be closer to the original center of the leaves and probably be a little bit stronger.

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by 86vwgti8v on Wed Jun 08, 2011 1:23 pm

Makes sense...
avatar
86vwgti8v
Dub Nut

Number of posts : 317
Location : Greenville sc
Registration date : 2011-03-14

View user profile

Back to top Go down

Re: Traditional question, anyone have a decent DIY for narrowing a beam

Post by fluxcap on Wed Jun 08, 2011 3:26 pm

86vwgti8v wrote:Makes sense...
well that's just my guess on it. No idea if it's correct or not Laughing

Nice job on your beam!

_________________
eric

It's like, how much more black could this be, and the answer is none.......none more black.

1962 ragtop beetle
1966 camper bus - Bocephus
avatar
fluxcap
Dub Lieutenant General

Number of posts : 3854
Location : Newnan, GA
Registration date : 2008-07-20

View user profile

Back to top Go down
